Flat Top Standoff

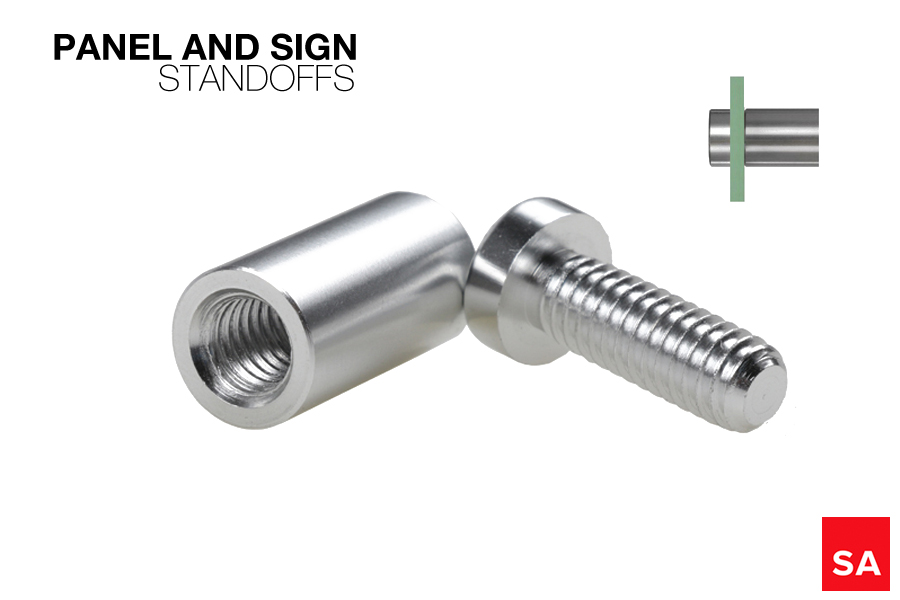

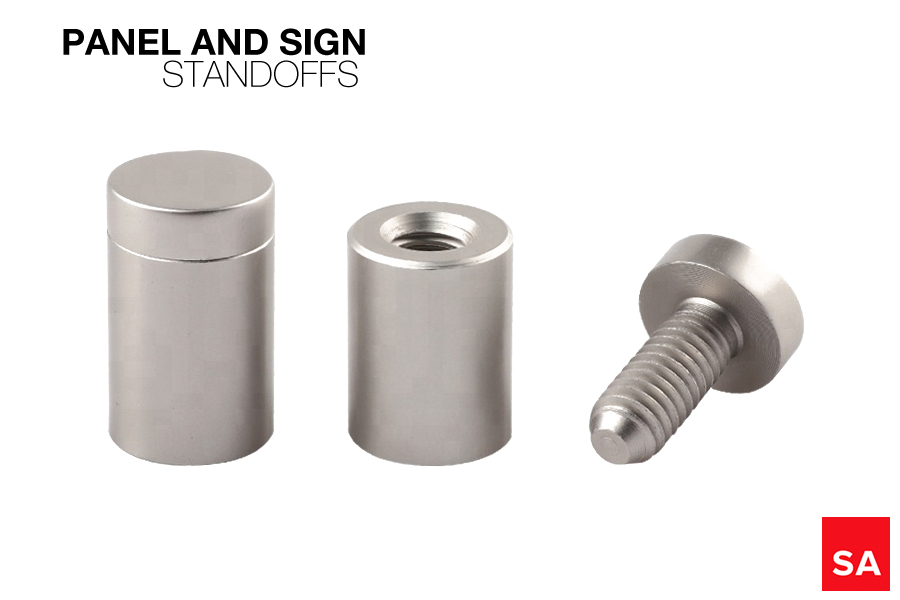

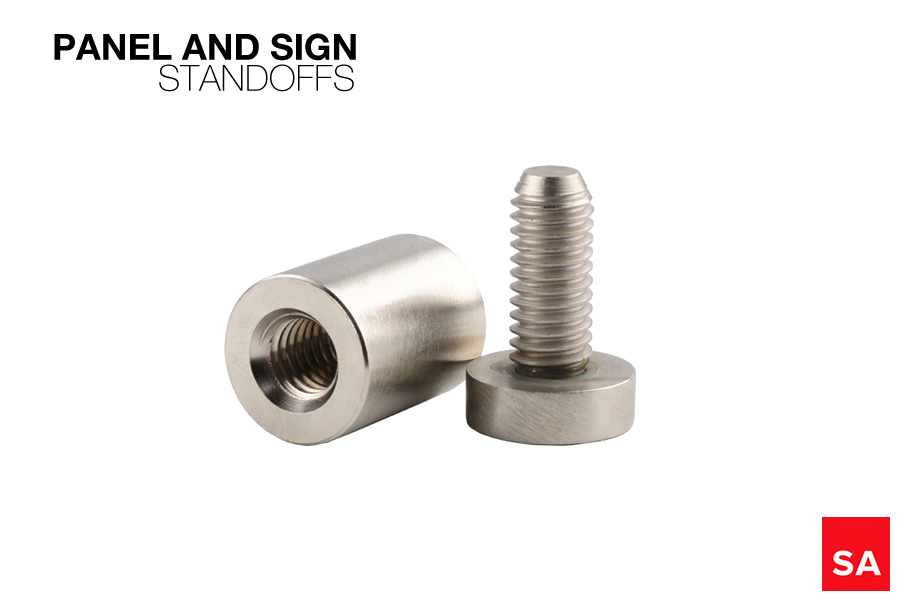

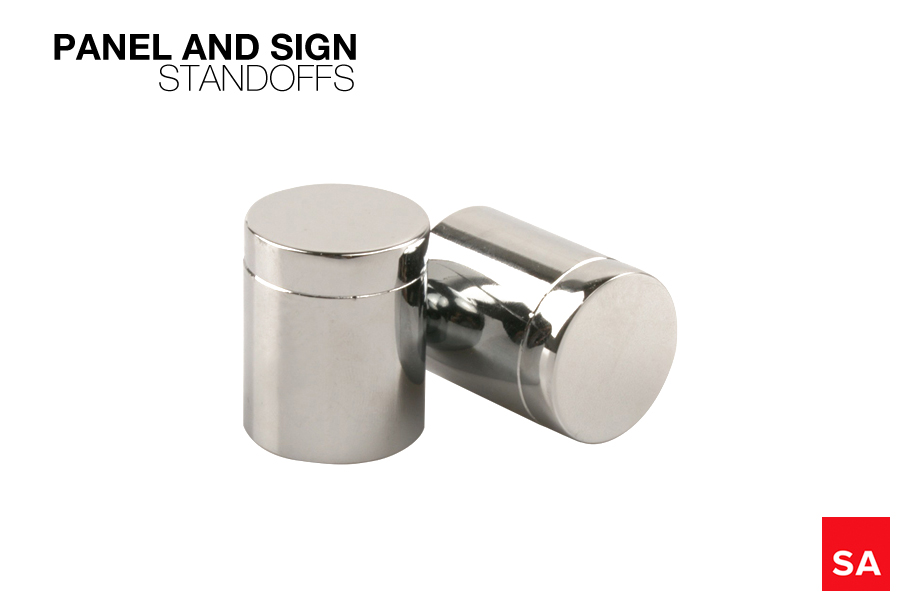

Standoffs are available in polished chrome, satin silver, and available in both aluminum and brass. The Standoff is ideal for suspending logo panels, photography, signage, glass, wood, and nameplates providing a modern, clean look..

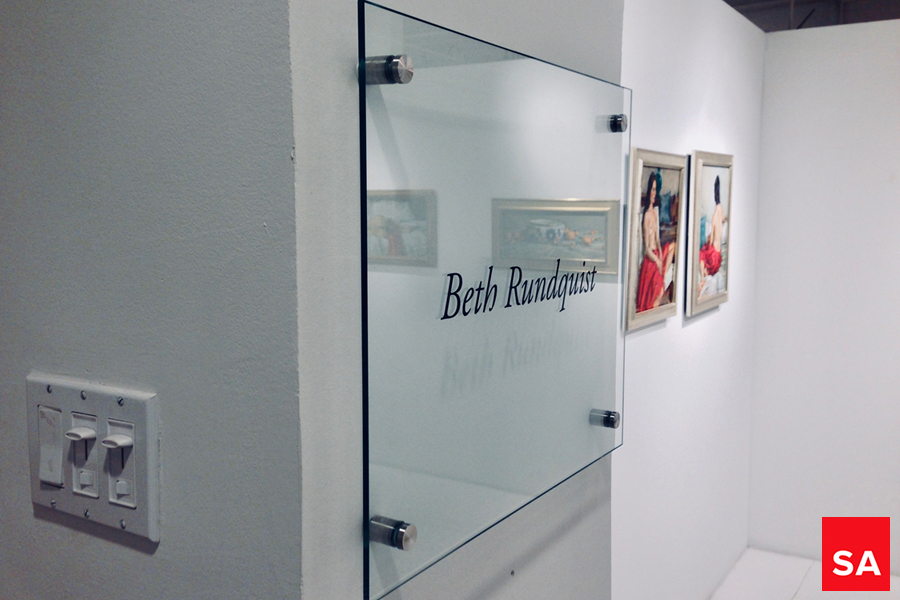

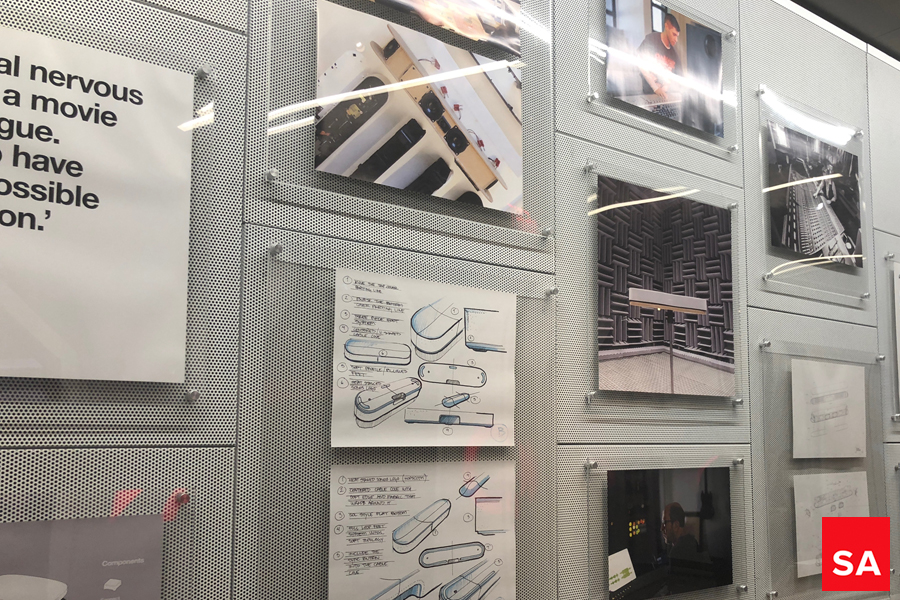

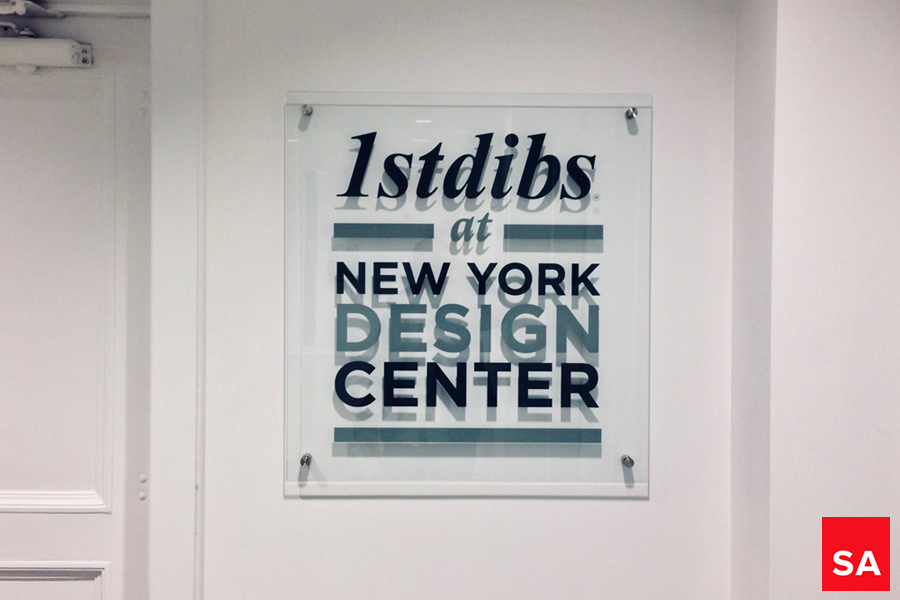

Standoffs are designed and used to suspend and mount artwork, pictures, photographs, glass, and panels at a fixed distance from the wall. Many businesses, schools, restaurants, and hotels choose standoffs to display signage to minimize damage to walls while creating a secure, elegant, and professional look.
Category Type | Standoff |
---|---|
SKU | CA-AL-Flat-Top |

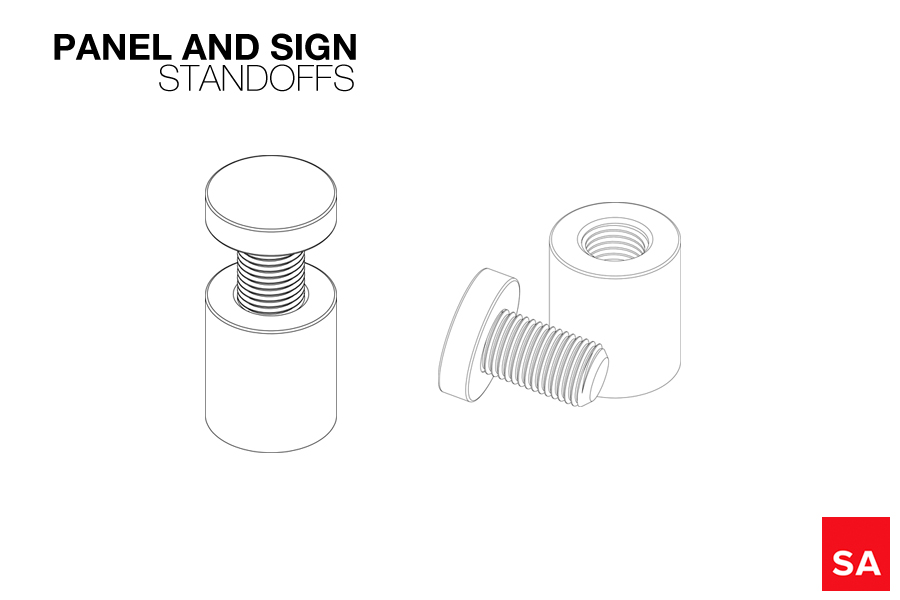

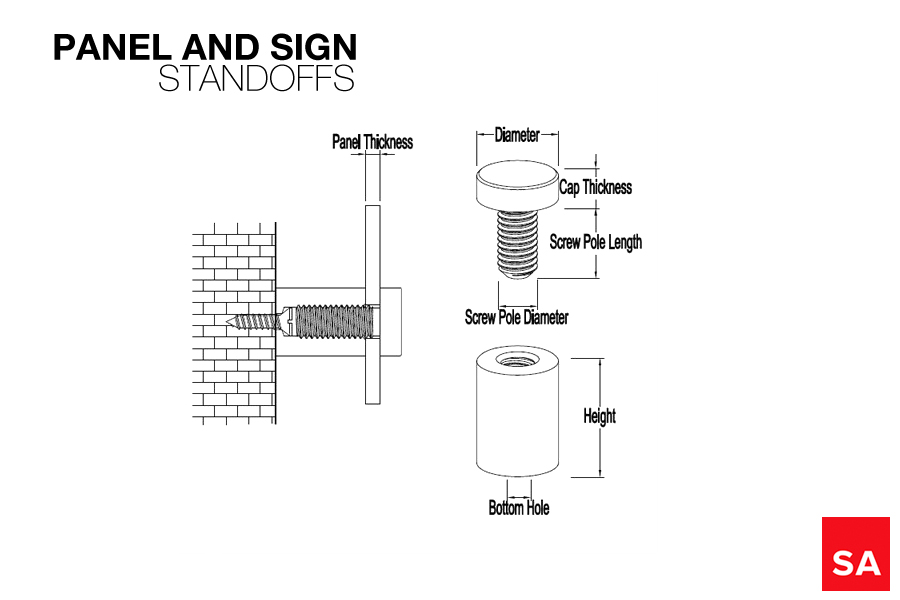

Additional Info | Product Information: Aluminum and Brass Standoffs 13mm x 13mm Standoff = 0.51" Diameter x 0.66"(Long With Cap) Cap Thickness: 4mm / 0.15" / 5/32 Frac Barrel Without Cap: 13mm / 0.51" / 33/64 Frac Screw Pole: Diameter: 6.5mm / 0.26" / 1/4 Frac ScrewPole Length: 11.5mm / 0.45" / 29/64 Frac Bottom Hole: 4mm / 0.15" / 1/16 Frac The 13mm x 13mm Standoff supports panels Max Thickness: 1/4” 13mm x 19mm Standoff = 0.51" Diameter x 0.90" (Long With Cap) Cap Thickness: 4mm / 0.15" / 5/32 Frac Barrel without Cap: 19mm / 0.74" / 3/4 Frac Pole: Diameter: 6.5mm / 0.26" / 1/4 Frac Screw Pole Length: 16.5mm / 0.63” Screw Hole: 4mm / 0.15" / 1/16 Frac The 13mm x 19mm Standoffsupports panels panels Max Thickness: 3/8” 13mm x 25mm Standoff = 0.51" Diameter x 1.14" (Long With Cap) Thickness: 4mm / 0.15" / 5/32 Frac Screw without Cap: 25 mm / 0.98” Screw Pole Diameter: / 0.09" / 3/32 Frac Screw Screw Pole Length: 22.mm / 0.86" / 55/64 Frac Bottom Hole: 4mm / 0.15" / 1/16 Frac The 13mm x 25mm Standoff supports panels Max Thickness: 1/2”
19mm x 19mm Standoff = 0.74" Diameter x 1" (Long With Cap) Cap Thickness: 6.35mm / 0.25" / 1/4 Frac Barrel without Cap: 19mm / 0.74" / 3/4 Frac Screw Pole: Diameter: 9mm / 0.35" / 23/64 Frac Screw Pole Length: 17mm / 0.66" / 43/64 Frac Bottom Hole: 4mm / 0.15" / 1/16 Frac The 19mm x 19mm Standoff supports panels Max Thickness: 1/4” 19mm x 25mm Standoff = 0.74" Diameter x 1.23" Long With Cap) Cap Thickness: 6.35mm / 0.25" / 1/4 Frac Barrel without Cap: 25mm / 0.98" / 63/64 Frac Screw Pole: Diameter: 8mm / 0.31" / 5/16 Frac Screw Pole Length: 15mm / 0.59" / 19/32 Frac Bottom Hole: 4mm / 0.15" / 5/32 Frac The 19mm x 25mm Standoff supports panels Max Thickness: 1/2” 25mm x 25mm Standoff = 0.98" Diameter x 1.25" (Long With Cap) Cap Thickness: 6.35mm / 1/4” Barrel Length without Cap: 25.4mm / 1” Screw Pole: Diameter: 6.35mm / 1/4” Screw Pole Length: 22.5mm / 7/8” Bottom Hole: 4mm / 0.15" / 5/32 Frac The 25mm x 25mm Standoff supports panels Max Thickness: 1/2” 25mm x 40mm Standoff = 0.98" Diameter x 1.82" (Long With Cap) Cap Thickness: 6.35mm / 0.25" / 1/4 Frac Barrel Length without Cap: 40mm / 1.57" / 1-37/64 Frac Screw Pole Diameter: 9.3mm / 0.36" / 23/64 Frac Screw Pole Length: 34mm / 1.33" / 1-11/32 Frac Bottom Hole: 6mm / 0.23" / 15/16 Frac The 25mm x 40mm Standoff supports panels panels Max Thickness 1” |
Usage | Home / Office / Professional / Industrial |
No. Items in Package | 1 |

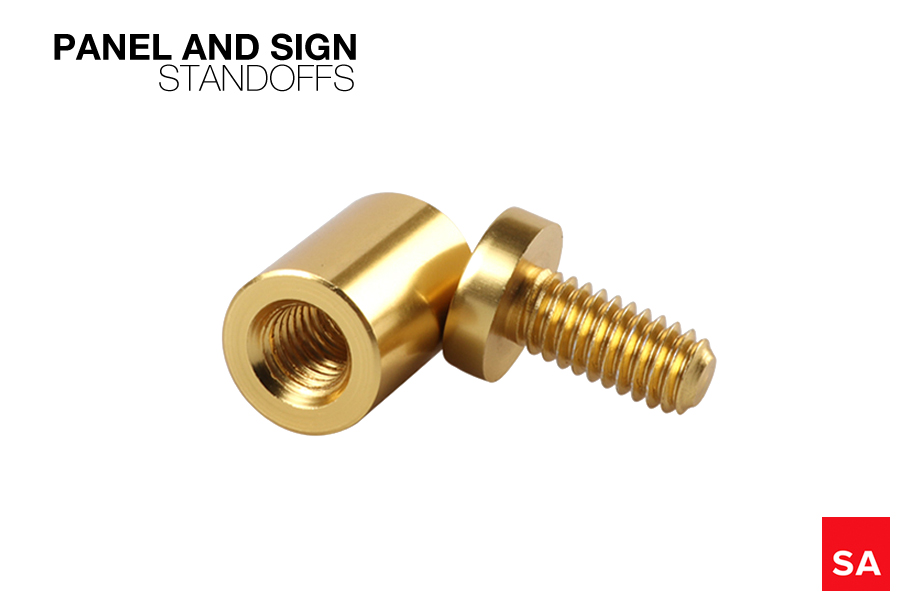

Description | Standoffs are available in polished chrome, satin silver, and available in both aluminum and brass. The Standoff is ideal for suspending logo panels, photography, signage, glass, wood, and nameplates providing a sophisticated, modern look.. Standoffs are designed and used to suspend and mount artwork, pictures, photographs, glass, and panels at a fixed distance from the wall. Many businesses, schools, restaurants, and hotels choose standoffs to display signage to minimize damage to walls while creating a secure, elegant, and professional look. Standoffs can also be used as a spacers using acrylic sheets to protect works of art that are displayed in public places. The brass standoff can be used as a spacer and mounted to desks and tables to create an elevation with the ability to secure either wood or glass. Standoffs are available in both Aluminum and Brass. This item is sold as single unit. |
